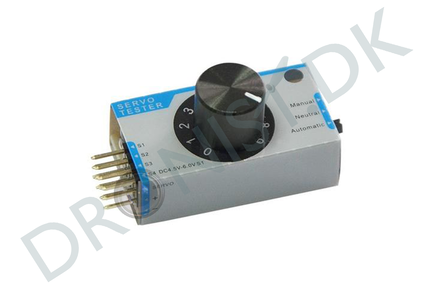

High Precision Servo/ESC Tester

Function:

Detect various servos.

Can connect ESC, detect the operating state of ESC and motor.

It can also connect 3-pack ESC or servo, single chip control, has good stability and high precision.

Parameter:

Output: ≤15mA (5.0)

Input: DC 4.5-6V

SUB trim output signal: 1.5ms±0.5ms

Size: 42.5*24*23.5mm

Weight: 11g

Pulse width adjustment method: automatic/hand adjustment/automatic SUB trim signal output

Power supply: 4-5 AA battery, BEC/UBEC(don’t need power supply with built-in BEC servo)
